Drainage Cell

Drainage Cell

Singhal Industries Pvt. Ltd., a well-known manufacturers company in the world which provides the best Drainage cells. People call it by different names like drainage board, drainage mats, dimpled membrane, PP drainage mats, drainage plate, drainage cell mat, flo cell, etc. Drainage cell made with high high-strength interlocking panel system with 100% recycled polypropylene or virgin polypropylene.

View Product Details

Description

It is very lightweight but can still hold up to 90 tonnes load. Due to lightweight & easy installation steps, heavy machines & technically skilled labour are not required. It is a three-dimensional geo-composite designed to provide the solution for sub-surface drainage systems, which helps in creating successful rooftop garden & planter boxes without any problem of cracking or leakage & it also works as an alternative for heavy aggregate drainage treatment. Excess water can be easily discharged out due to its uniform structure & void space, which helps to promote plant growth & helps to sustain a steady temperature on the wall surface. This drainage cell also controls water logging and decreases water pollutants.

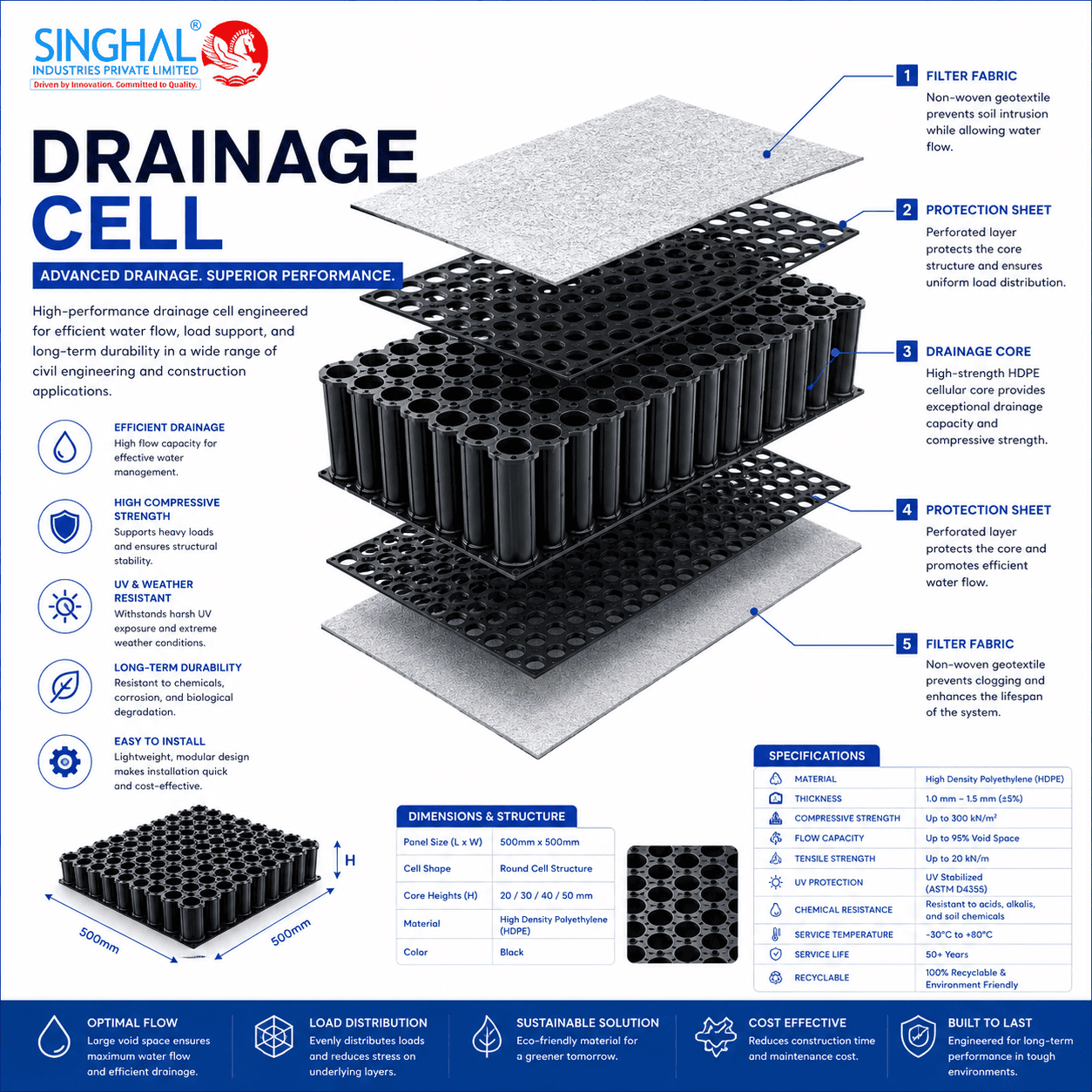

Covering the drainage cell with non-woven fabrics helps water permeability and is used as a soakaway system for rainwater from terraces, retaining walls, roof gardens, sports fields, basements etc. This drainage board is also used to reduce hydrostatic pressure in-ground, reduce heat & cold, filtrate rainwater, and remove excess water.

Our professional, highly experienced quality testing team always ensures that drainage cells are manufactured, keeping in mind strict quality control measures by following international standards to maintain the highest quality and provide the best service to our customers.

Features

  • Highly durable
  • Quick & easy to install
  • Weather & chemical resistance
  • Lightweight & easy to use
  • Reliable performance
  • Thermal regulation
  • Water storage
  • Resistance to puncture of plant roots
  • Excellent drainage capacity
  • Easily transportation
  • Heat Insulation
  • Water drainage
  • High Compressive strength
  • Waterproof polypropylene material
  • Ventilation

Advantages

  • Cost effective
  • Eco Friendly
  • Helps water flow freely
  • High flow rate
  • Rapid & efficient drainage
  • Versatile design can be fix horizontally or vertically
  • Relieves hydrostatic pressure in the ground
  • Strong structural design
  • Long life expectancy
  • Biologic resistant
  • High Infiltration
  • Preventing waterlogged ground

Applications

  • Vertical or horizontal drainage
  • Landscaping
  • Building
  • Planter boxes
  • Pond filtration systems
  • Construction industries
  • Sports fields
  • Roof gardens
  • Terraces
  • Soakaway tanks
  • Retaining walls
  • Podium Landscaping
  • Concealed drains
  • Roads & Railways, Airports & Beach Project
  • Civil works
  • Underground Parking
  • Beach

Specification

    • Material – Recycle PP, HDPE
    • Color – Black, White, Green
    • Shape – Rectangular
    • Length – 2-6 m
    • Thickness – 10 mm, 15mm, 25 mm, 30 mm
    • Service Temperature range – Minus 20 to 120 degree C
    • Size – 20mm (H) x 400mm (W) 620mm (L), 30mm (H) x 400mm (W) 620mm (L), 52mm (H) x 260mm (W) 480mm (L)
    • Plastic Drain cell – 30mm & 20 mm
    • Tensile loading - >1000pa
    • Void ration - >90%
    • Biologic Resistance – Not affected by weeds, algae, soil – borne chemical bacteria
    • Chemical Resistance - Good resistance to Mineral oils, alcohols, acid etc

Our company has a team of experts who can provide you with various sizes & colour of drainage cells to meet your unique specifications.
