The High Quality 3D Geomat for Erosion Control, Slope Protection & Soil Stabilization provides better performance than other Geomat products.
Singhal Industries Private Limited is a reputed 3D Geomat manufacturer in India, providing long-lasting geosynthetic erosion control mats for civil engineering, infrastructure, environmental protection, landscaping and soil stabilization projects.
3D Geomat comes in standard and bespoke roll dimensions that are supplied to contractors, EPC organizations, highway administrations, irrigation organizations, mining operations, oil and gas sites, railway projects, and industries requiring efficient slope protection and soil stabilization products.

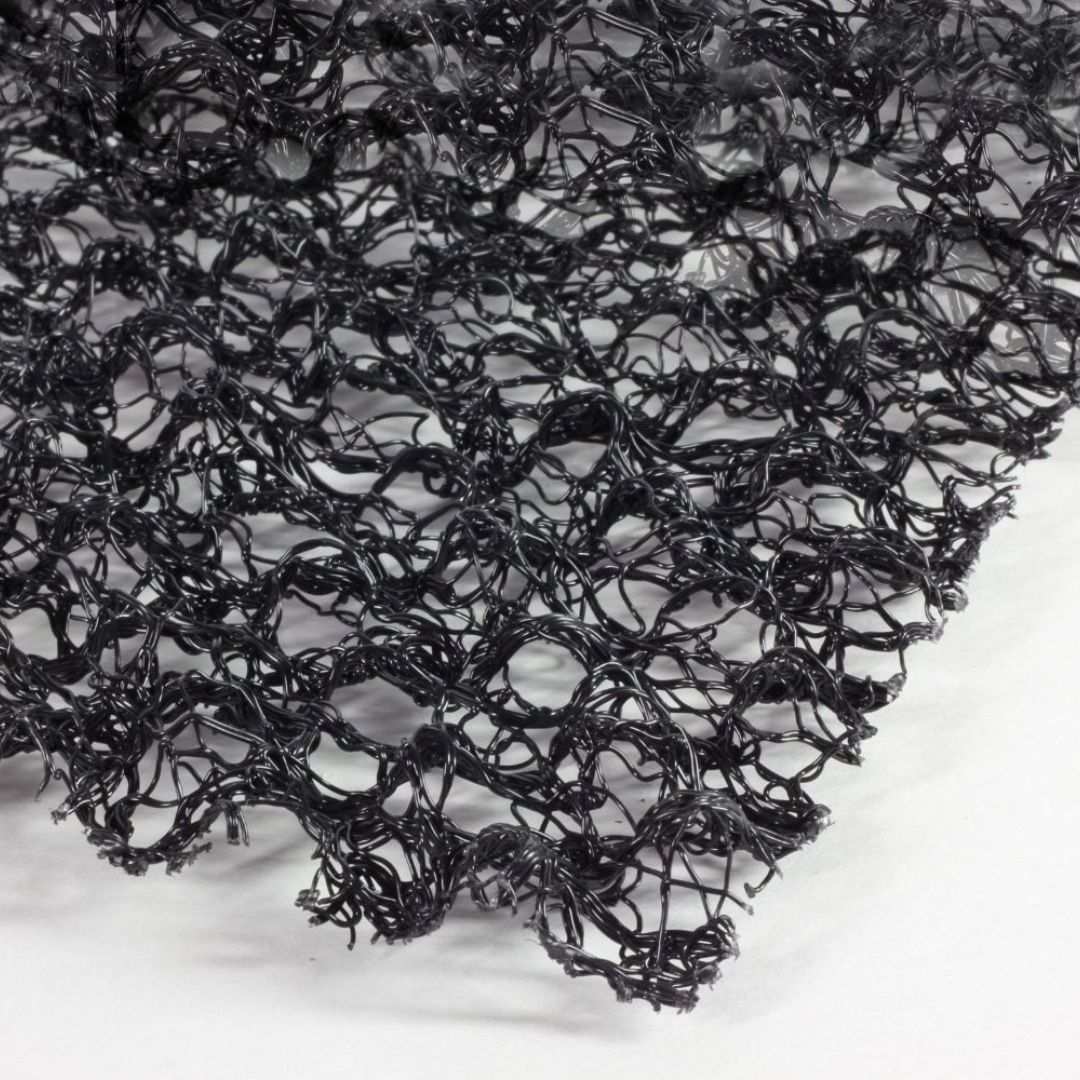

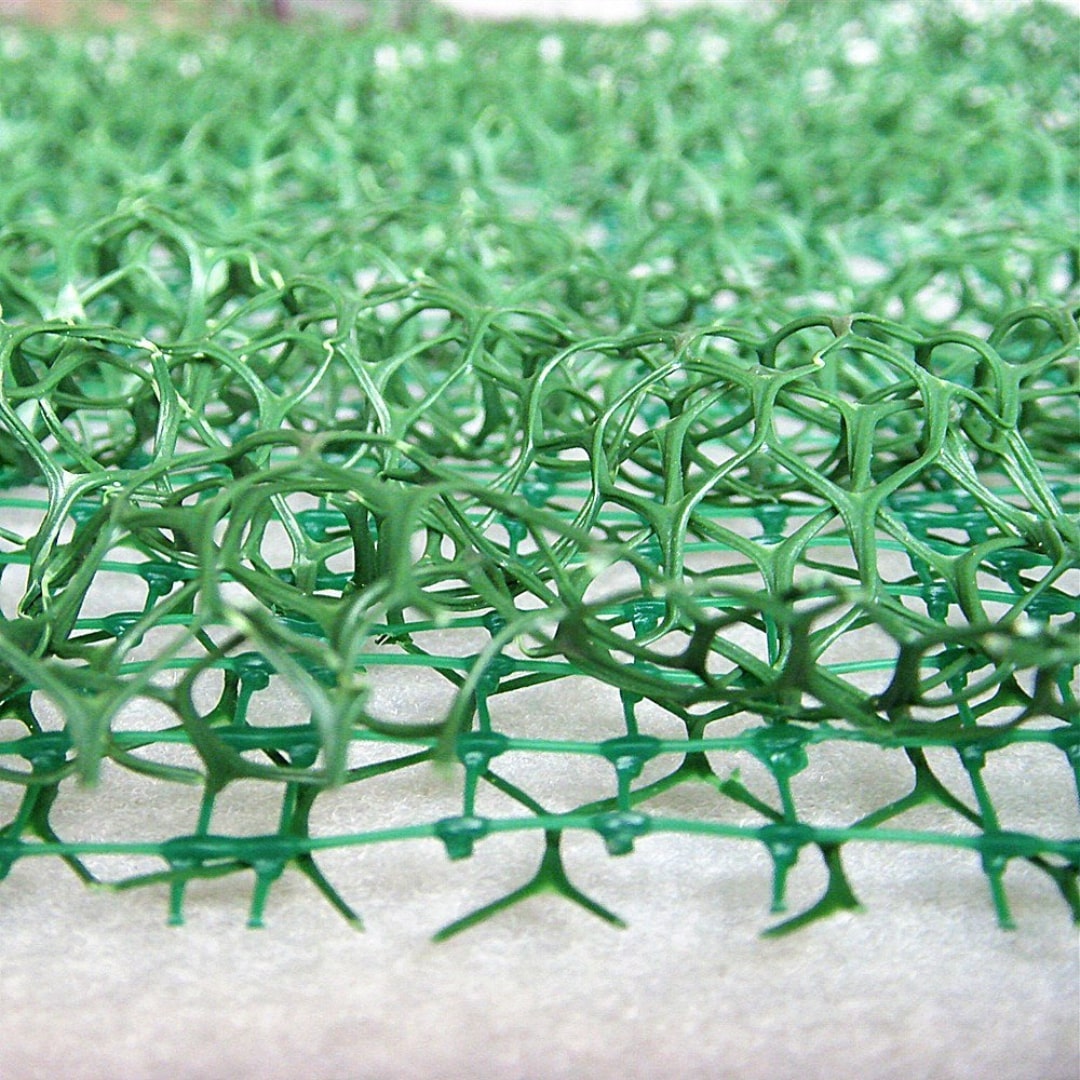

3D Geomat is a 3D geosynthetic polymer mat (HDPE or polypropylene). It is an open cell mesh that allows for retention of soil, water permeability and grows vegetation.
The 3D Geomat is a soft erosion control technique that can be used with the natural surface, as opposed to hard erosion control approaches like concrete lining or stone pitching. Protects soil in early stages of plant growth and permits roots to anchor in the mat and soil environment.
Therefore 3D Geomat is a useful solution for slopes, embankments, channels, river banks and when soil has to be displaced while drainage is required but not obstructed, such as in landfills, roadside projects and elsewhere.
Standard 3D Geomat
Useful to improve slope stability and soil protection, landscaping and erosion control projects.
Heavy-Duty 3D Geomat
It is designed for difficult sites like steep slopes, embankments, drain channels and corridors for infrastructure.
Vegetation Support Geomat
It is used when grass, bushes or roots of plants are expected to grow over time and provide natural reinforcement.
UV-Resistant 3D Geomat
Ideal for outdoor use exposed to the sun, rain, and changes in weather conditions.
Custom 3D Geomat
Made to order according to project specifications for roll length, thickness and weight, color and other site-specific requirements for performance.
3D Geomat is available in various options of custom and standard configurations:
Roll dimensions and grade can be tailored based on the incline of the slope, along with soil conditions and runoff, the planned vegetation scheme, and the design needs set by the project.
With Singhal Industries Private Limited, 3D Geomat is manufactured with focus on strength, mesh creation, roll consistency and the overall performance of the site.
Step 1: Raw Material Selection
High-quality HDPE or polypropylene material is picked in accordance with the required durability, flexibility, as well as resistance to environmental conditions.
Step 2: Polymer Processing
The selected material is then processed under controlled conditions to produce the geosynthetic structure that is required.
Step 3: Creating the Mesh
The three dimensional, open cell mat is intended to help in holding soil, drainage and growing of the vegetation.
Step 4: Managing the thickness and the density
The mat is manufactured in required dimensions and density.
Step 5: Roll Conversion
The Geomat that is finished is transformed into a roll for simple transportation, handling and placement on the location.
Step 6: Quality Checking & Packing
The rolls are inspected for the thickness and weight, width and mesh consistency, then they are securely packed for delivery.
Singhal Industries Private Limited is a trusted 3D Geomat manufacturer, 3D Geomat Supplier and exporter of 3D Geomats. geosynthetic solutions to civil engineering, infrastructure industrial, environmental, and other projects.
Our strengths are:
We concentrate on providing practical robust, long-lasting, and easily applied 3D Geomat for contractors, EPC firms, government projects, and industrial buyers.
3D Geomat is utilized to prevent erosion as well as the stabilization of slopes and soils embankment support and vegetation protection.
3D Geomat comprises HDPE or polypropylene polymer materials.
It is three-dimensional and holds soil particles to encourage growth of roots and reduce soil movement as a result of water runoff and rainfall.
Yes, it is open and grass and plant roots can grow through the mat and strengthen the soil surface.
It is placed on embankments, slopes, roads, river banks, railroads, mines, and landscaping sites.
Its normal thickness normally lies between 10 to 16 mm.
Common lengths of rolls include 30 millimeters, 40 millimeters and 50 meters, with a width of 2 meters.
Yes, the heavy-duty grade can be used to build steep slopes, if determined by slope angle, soil type and design of the project.
3D Geomat controls erosion and assists in the growth of vegetation 3D Geomat reduces erosion and helps support vegetation Geomembrane serves to create an impermeable barrier to protection.
3D Geomat is mainly for plant retention and soil Geonet is mostly utilized for drainage.
It is employed for drain channels, canal slopes and coastal protection projects.

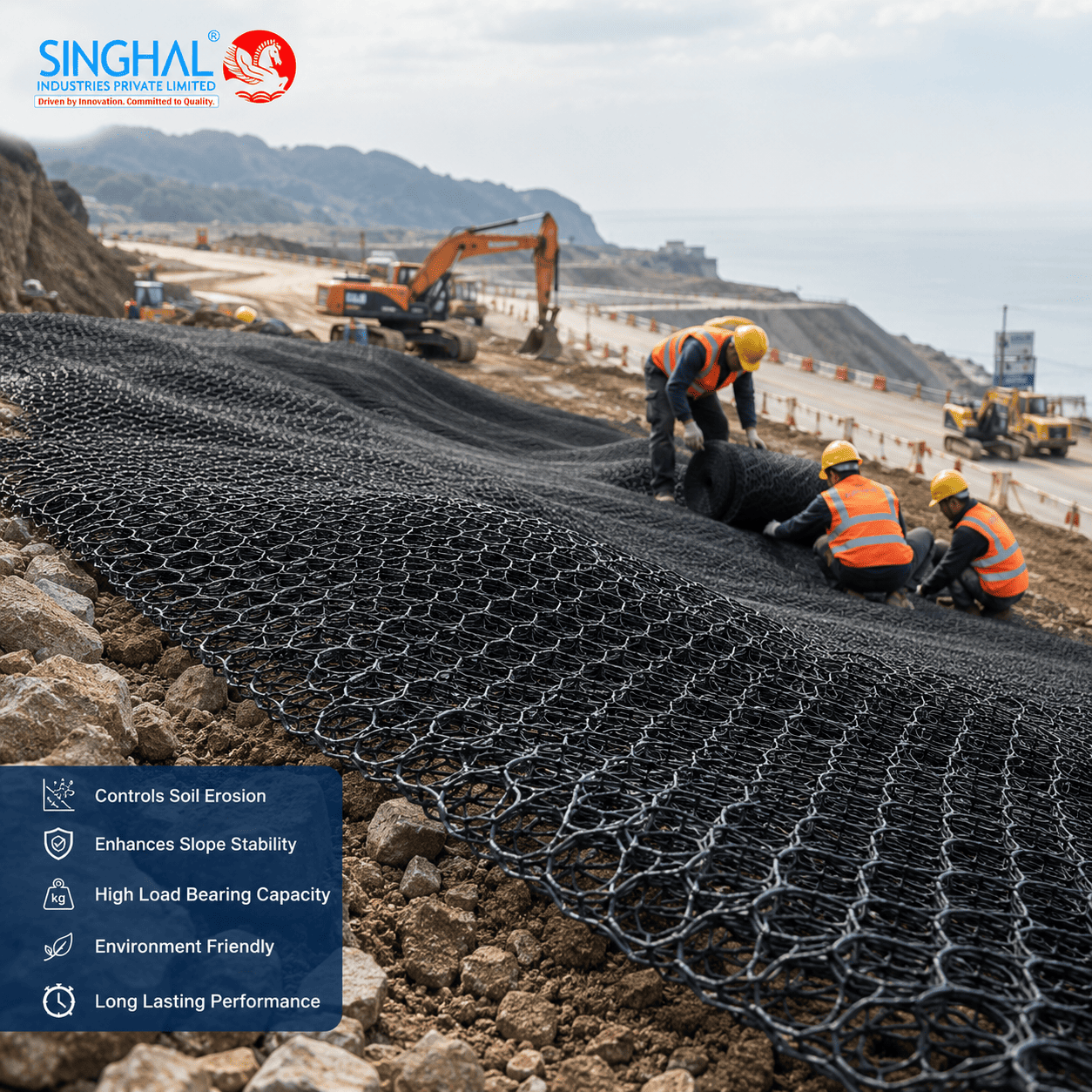

It is indeed light and comes in rolls and is able to be positioned on prepared soil surfaces using an anchor that is suitable for the soil.
Yes, the mesh structure allows water flow through, while also helping to retain soil.
Construction companies, EPC firms, roads authorities, department of irrigation landscaping companies, mining companies and industrial project buyers utilize Geomat 3D. Geomat.
The selection is based on slope angle, the soil type, the flow of water, plan for vegetation and thickness, strength of tensile, and project requirements.
| Site Condition | Resistance Level |
| Rainfall Impact | Excellent |
| Surface Runoff | Excellent |
| UV Exposure | Good |
| Soil Movement | Excellent |
| Root Penetration Support | Excellent |
| Drainage Performance | Good |
| Outdoor Site Exposure | Good |
| Property | 3D Geomat | Geomembrane |
| Main Function | Control of erosion and support for vegetation | Waterproofing and encapsulation |
| Structure | Open mesh in three dimensions | Liner or sheet impermeable |
| Water Flow | Allows drainage | Stops from causing seepage |
| Vegetation Growth | Supports root development | Doesn't support direct contact with vegetation. |
| Best Use | Slopes, embankments and riverbanks | Tanks, landfills, ponds containment areas, ponds |
| Installation Goal | Soil stabilization | Gas barrier or liquid |
| Buyer Need | Erosion protection | Prevention of leakage |
3D Geomat is preferred when soil must be stable and the growth of vegetation is desired. Geomembrane is chosen when the project requires an impermeable barrier to contain the soil or control seepage.
| Property | 3D Geomat | Geonet |
| Primary Use | Control of erosion and soil retention | Fluid transmission and drainage |
| Structure | Mat with open-cell design and 3D depth | Net-like drainage core |
| Vegetation Support | Yes | Limited |
| Common Area | Slopes, banks, embankments | Landfills, drainage layers, retaining systems |
| Soil Holding | Strong surface retention | Primarily, it is a function for drainage. |
| Water Movement | It allows for infiltration and runoff control. | The drainage layer contains channels of water. |
| Best For | Green erosion control | Systems for filtration and drainage |
3D Geomat is better for soil erosion control and plant support. Geonet is a better choice when the project requires a well-planned drainage in the walls behind, under liner systems, or within geosynthetic structures.
Slope Stabilization
Useful on highway slopes and railway embankments hills, canals, hill roads and slopes of infrastructure to stop the erosion of the soil and to prevent surface failure.
Riverbanks & Canal Protection
Helps safeguard banks from the effects of water movement, rain impact, water movement, and soil erosion while promoting vegetation development.
Road & Railway Projects
It is used to connect road shoulders embankments, cut slopes, embankments and rail corridors when stable ground conditions are required for the long term.
Land Rehabilitation
Useful for mining areas, disturbed land, landfill slopes, and construction-affected surfaces that need ecological recovery.
Landscaping & Urban Development
It is used in gardens, parks and green slopes. They are also used for beautification of roadsides, and in the urban drain areas.
Industrial & Oil & Gas Sites
For stabilizing the site and pipeline corridors, drainage slopes, Access roads, and projects that are prone to erosion.
| Property | Specification |
| Material | HDPE / Polypropylene |
| Structure | Open-cell mesh in three dimensions |
| Thickness Range | Commonly 10 mm to 16 mm |
| Tensile Strength | Approx. 0.8 kN/m to 3.2 kN/m, model dependent |
| Weight Range | Approx. 220 GSM to 430 GSM |
| Standard Width | Around 2 meters |
| Roll Length | 30 millimeters, 40 millimeters 50 m, or as per your requirements. |
| Color Options | Green, black or project-specific |
| Water Permeability | Good |
| Application | Erosion control, slope protection, vegetation support |
| Customization | Available choices include roll width, roll length, mass, and grade |
| Application | Recommended Geomat Type |
| Light Landscaping | Standard 3D Geomat |
| Roadside Slopes | Medium-duty 3D Geomat |
| Steep Embankments | Heavy-duty 3D Geomat |
| Riverbanks | High-strength erosion control Geomat |
| Mining Rehabilitation | Vegetation support Geomat |
| Canal Slopes | Drainage-friendly 3D Geomat |
| Custom Projects | Geomat grade that is specific to the application |
